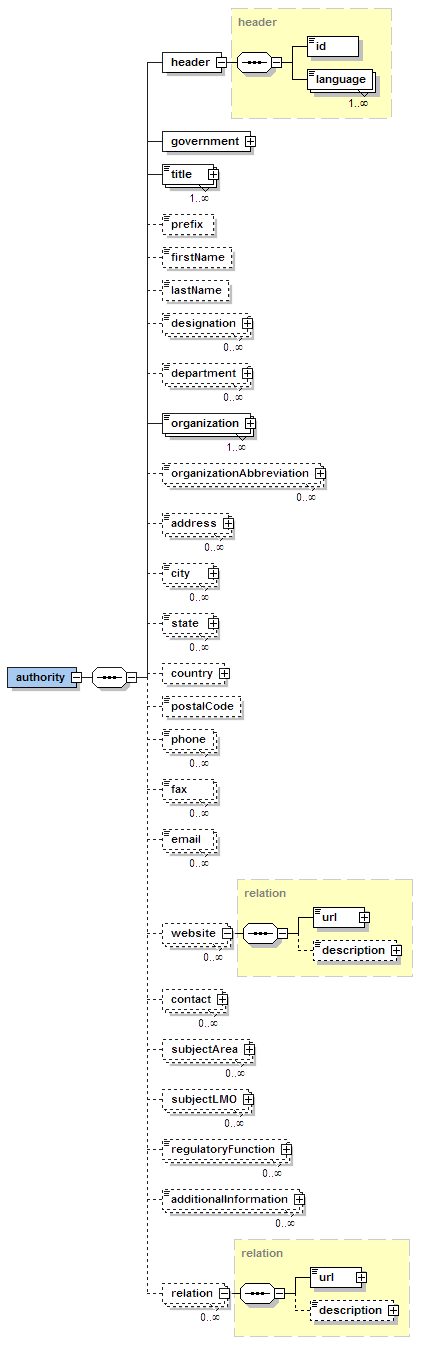

Competent National Authority (authority.xsd)

<xs:element xmlns:xs="http://www.w3.org/2001/XMLSchema" name="authority">

   <xs:complexType>

      <xs:sequence>

         <xs:element name="header" type="header" />

         <xs:element name="government" type="reference">

            <xs:annotation>

               <xs:documentation>Controlled Vocabulary: Countries (domainID=1)</xs:documentation>

            </xs:annotation>

         </xs:element>

         <xs:element name="title" type="lstring" maxOccurs="unbounded" />

         <xs:element name="prefix" type="xs:string" minOccurs="0" />

         <xs:element name="firstName" type="xs:string" minOccurs="0" />

         <xs:element name="lastName" type="xs:string" minOccurs="0" />

         <xs:element name="designation" type="lstring" minOccurs="0" maxOccurs="unbounded" />

         <xs:element name="department" type="lstring" minOccurs="0" maxOccurs="unbounded" />

         <xs:element name="organization" type="lstring" maxOccurs="unbounded" />

         <xs:element name="organizationAbbreviation" type="lstring" minOccurs="0" maxOccurs="unbounded" />

         <xs:element name="address" type="lstring" minOccurs="0" maxOccurs="unbounded" />

         <xs:element name="city" type="lstring" minOccurs="0" maxOccurs="unbounded" />

         <xs:element name="state" type="lstring" minOccurs="0" maxOccurs="unbounded" />

         <xs:element name="country" type="reference" minOccurs="0">

            <xs:annotation>

               <xs:documentation>Controlled Vocabulary: Countries (domainID=1)</xs:documentation>

            </xs:annotation>

         </xs:element>

         <xs:element name="postalCode" type="xs:string" minOccurs="0" />

         <xs:element name="phone" type="xs:string" minOccurs="0" maxOccurs="unbounded" />

         <xs:element name="fax" type="xs:string" minOccurs="0" maxOccurs="unbounded" />

         <xs:element name="email" type="xs:string" minOccurs="0" maxOccurs="unbounded" />

         <xs:element name="website" type="relation" minOccurs="0" maxOccurs="unbounded" />

         <xs:element name="contact" type="reference" minOccurs="0" maxOccurs="unbounded">

            <xs:annotation>

               <xs:documentation>Record: Contact (recordType="contact")</xs:documentation>

            </xs:annotation>

         </xs:element>

         <xs:element name="subjectArea" type="reference" minOccurs="0" maxOccurs="unbounded">

            <xs:annotation>

               <xs:documentation>Controlled Vocabulary: Subject Areas / Regulatory Functions (domainID=6)</xs:documentation>

            </xs:annotation>

         </xs:element>

         <xs:element name="subjectLMO" type="reference" minOccurs="0" maxOccurs="unbounded">

            <xs:annotation>

               <xs:documentation>Controlled Vocabulary: LMO Types by subject (domainID=106)</xs:documentation>

            </xs:annotation>

         </xs:element>

         <xs:element name="regulatoryFunction" type="lstring" minOccurs="0" maxOccurs="unbounded" />

         <xs:element name="additionalInformation" type="lstring" minOccurs="0" maxOccurs="unbounded" />

         <xs:element name="relation" type="relation" minOccurs="0" maxOccurs="unbounded" />

         <xs:element name="notes" type="xs:string" minOccurs="0" />

      </xs:sequence>

   </xs:complexType>

</xs:element>
