National Law, Regulation or Guideline (law.xsd)

Source

<xs:element xmlns:xs="http://www.w3.org/2001/XMLSchema" name="law">


   <xs:complexType>


      <xs:sequence>


         <xs:element name="header" type="header" />


         <xs:element name="government" type="reference">


            <xs:annotation>


               <xs:documentation>Controlled Vocabulary: Countries (domainID=1)</xs:documentation>


            </xs:annotation>


         </xs:element>


         <xs:element name="jurisdiction" type="reference" minOccurs="0" maxOccurs="unbounded">


            <xs:annotation>


               <xs:documentation>Controlled Vocabulary: Countries (domainID=1)</xs:documentation>


            </xs:annotation>


         </xs:element>


         <xs:element name="title" type="lstring" maxOccurs="unbounded" />


         <xs:element name="documentType" type="reference">


            <xs:annotation>


               <xs:documentation>Controlled Vocabulary: Legislation Types (domainID=4)</xs:documentation>


            </xs:annotation>


         </xs:element>


         <xs:element name="subjectArea" type="reference" minOccurs="0" maxOccurs="unbounded">


            <xs:annotation>


               <xs:documentation>Controlled Vocabulary: Subject Areas (domainID=6)</xs:documentation>


            </xs:annotation>


         </xs:element>


         <xs:element name="subjectLMO" type="reference" minOccurs="0" maxOccurs="unbounded">


            <xs:annotation>


               <xs:documentation>Controlled Vocabulary: LMO Types by subject (domainID=106)</xs:documentation>


            </xs:annotation>


         </xs:element>


         <xs:element name="objective" type="lstring" minOccurs="0" maxOccurs="unbounded" />


         <xs:element name="scope" type="lstring" minOccurs="0" maxOccurs="unbounded" />


         <xs:element name="entryIntoForce" type="xs:dateTime" minOccurs="0" />


         <xs:element name="amendments" type="lstring" minOccurs="0" maxOccurs="unbounded" />


         <xs:element name="document" type="document" minOccurs="0" maxOccurs="unbounded" />


         <xs:element name="unofficialDocument" type="document" minOccurs="0" maxOccurs="unbounded" />


         <xs:element name="authority" type="reference" minOccurs="0" maxOccurs="unbounded">


            <xs:annotation>


               <xs:documentation>Record: Regulatory contact information (recordType="authority")</xs:documentation>


            </xs:annotation>


         </xs:element>


         <xs:element name="additionalInformation" type="lstring" minOccurs="0" maxOccurs="unbounded" />


         <xs:element name="relation" type="relation" minOccurs="0" maxOccurs="unbounded" />


         <xs:element name="notes" type="xs:string" minOccurs="0" />


      </xs:sequence>


   </xs:complexType>

</xs:element>

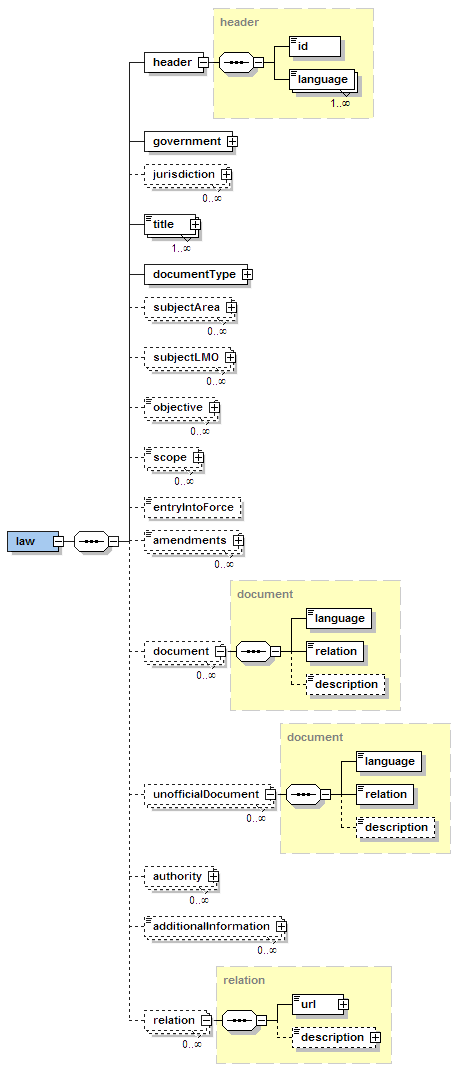

Diagram

Elements

header [header, mandatory]

government [reference, mandatory]

jurisdiction [reference, repeatable]

title [localized, mandatory]

documentType [reference, mandatory]

subjectArea [reference, repeatable]

subjectLMO [reference, repeatable]

objective [localized]

scope [localized]

entryIntoForce

amendments [localized]

document [document, repeatable]

unofficialDocument [document, repeatable]

authority [reference, repeatable]

additionalInformation [localized]

relation [relation, repeatable]



Update on 2007-05-23
